Dental Operating Microscope
by Bondent
Overview

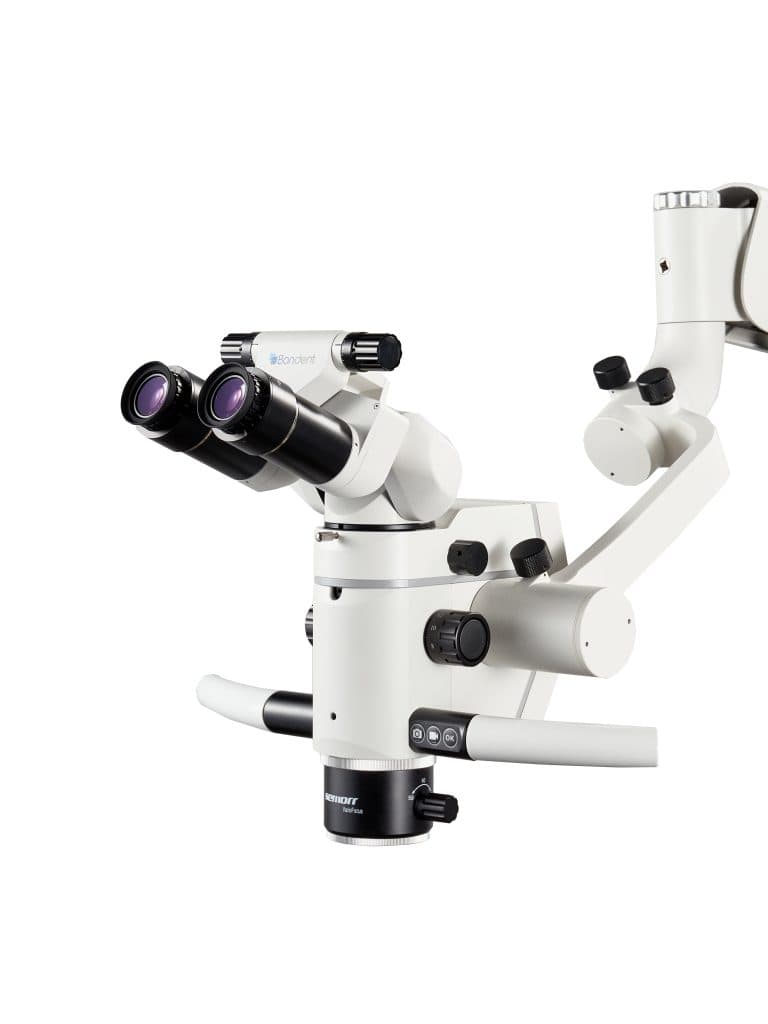

The DOM 4000D 4K (G4) is Bondent's core dental operating microscope, built around an all-in-one integrated design that eliminates the need for external cameras or beam splitters. The 4K camera system with 16-megapixel still image capture and full HD video recording is built directly into the microscope body, keeping the operatory clean and setup straightforward.
A large vario focus objective lens (F=180–460mm) delivers a field of view from 132mm down to 9.7mm with continuous zoom. Built-in Wi-Fi streams live video wirelessly to smartphones and tablets for chairside patient education or remote consultation. The suspension arm provides 1,650mm maximum reach with a 3-point damping balance system to hold any position without drift.
Key Highlights
- Built-in 4K camera — 16MP stills, Full HD video
- No external camera, beam splitter, or extra cabling needed
- Built-in Wi-Fi — streams live to smartphones & tablets
- Vario focus objective: F=180–460mm, FOV 9.7–132mm
- Suspension arm with 1,650mm reach & 3-point damping
- Binocular tube adjustable 0°–210° with IPD adjustment
- Nano silver ion antibacterial coating
- Membrane switch on handle for hands-free capture
- Suitable for endo, implants, perio, oral surgery & restorative
Features

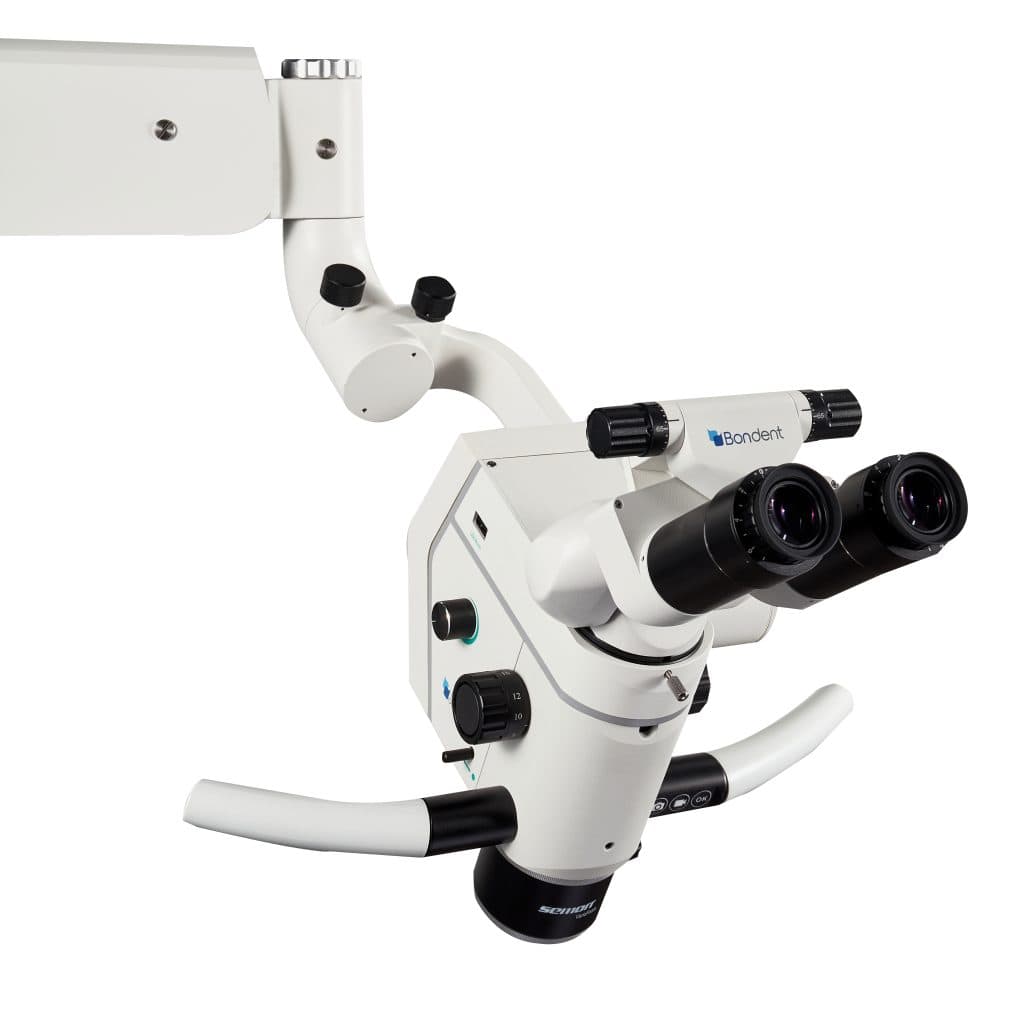

Built-in 4K Camera — No Beam Splitter Needed
Integrated 4K camera system with 16-megapixel still image capture and full HD video recording — all built directly into the microscope body. Eliminates the need for external cameras, beam splitters, or additional cabling, keeping the operatory clean and setup simple.
Wi-Fi Connectivity
Built-in Wi-Fi streams live video wirelessly to smartphones and tablets, enabling real-time chairside patient education, remote consultation, and team viewing without running additional cables through the operatory.
Continuous Zoom & Wide Focus Range
Large vario focus objective lens (F=180–460mm) provides a field of view from 132mm down to 9.7mm diameter. The wide focal range allows adjustment between magnification levels without repositioning the microscope.

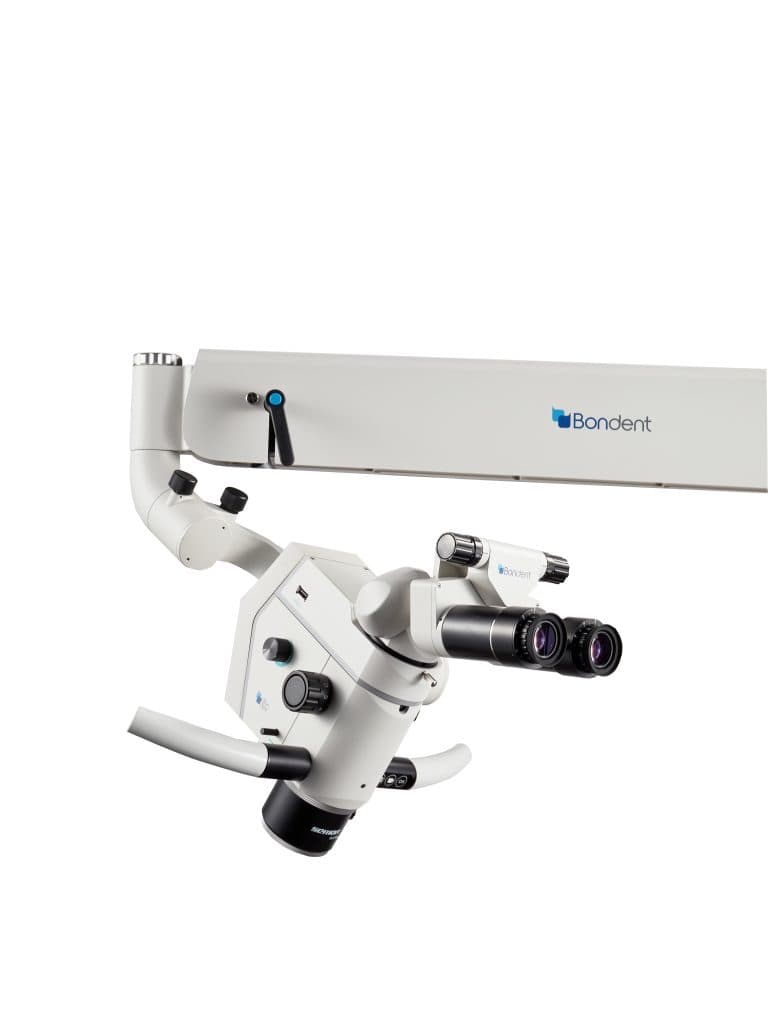

3-Point Damping Balance System
Suspension arm with 1,650mm maximum spread and a 3-point damping balance system maintains precise position without drift. The extended binocular tube adjusts from 0° to 210°, with IPD adjustment for comfortable, fatigue-free posture.
Specifications
| Camera | Built-in 4K — 16 megapixel stills, Full HD video |
| Connectivity | Built-in Wi-Fi — streams to smartphones & tablets |
| Objective Lens | F=180mm–460mm focal range |
| Field of View | 9.7mm – 132mm diameter |
| Binocular Tube | Extended, 0°–210° adjustable |
| Arm Spread | Maximum 1,650mm |
| Balance System | Suspension arm with 3-point damping |
| Coating | Nano silver ion antibacterial surface treatment |
| Controls | Membrane switch on handle for hands-free capture |
Product Brochure
DOM 4000D 4K — full specification document
Request a Quote
Contact our team to discuss which model fits your practice, get pricing, or arrange a demonstration.
