Dental Cart and Assistant Cart
Portable Mobile Dental System by Jinme Medical
Overview
The Jinme Dental Cart and Assistant Cart is a portable two-cart operatory system that delivers a fully functional treatment setup anywhere — no fixed plumbing, drainage, or compressed air required. The Dental Cart includes an electric motor with surgical drive system, ultrasonic scaler, air-water and air syringes, prophy angle, and four handpieces (1:5, 1:1, 1:4.2, 40:1) covering the full clinical range from high-speed restoration to implant placement.
The Assistant Cart completes the operatory with dual high-speed suction, one low-speed suction port, and a 13 L wastewater bottle — supporting a full dentist-assistant workflow without any floor drain or permanent plumbing connection.
Key Highlights
- Fully portable — no fixed water, drain, or compressed air needed
- Two-cart system: Dental Cart + Assistant Cart
- 4 handpieces included: 1:5, 1:1, 1:4.2, 40:1
- Electric motor with surgical drive system
- Ultrasonic scaler + air-water syringe + air syringe
- Prophy angle for prophylaxis and polishing
- Dual high-speed suction + low-speed suction (Assistant Cart)
- 13 L wastewater bottle — no floor drain needed
- Ideal for mobile practices, satellite offices, and overflow rooms
What's Included
Full contents of the Dental Cart and Assistant Cart

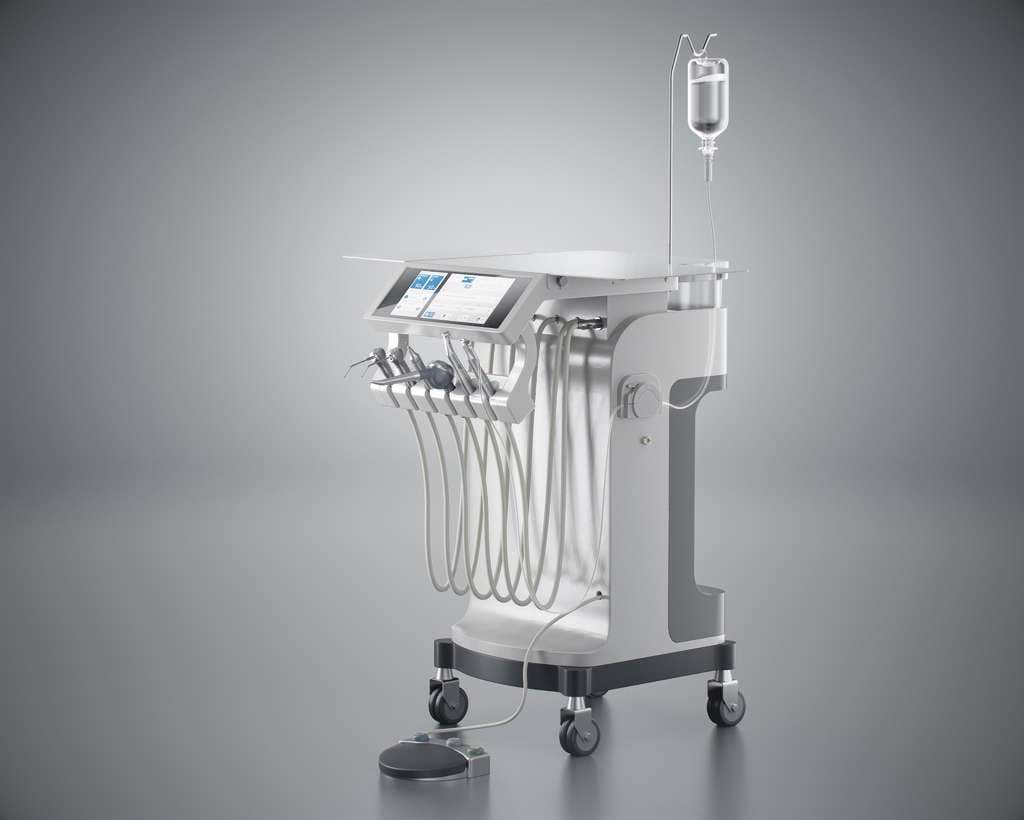

Dental Cart
Electric Motor
Powers all handpieces via the surgical drive system
Surgical Drive System
Full-range motor controller for implant, extraction, and restoration
Prophy Angle
For polishing and prophylaxis procedures
Ultrasonic Scaler
For calculus removal and periodontal therapy
Air-Water Syringe
Three-way syringe for rinsing and drying
Air Syringe
Dedicated air delivery for drying and clearing
1:5 Contra-Angle Handpiece
High-speed restoration — up to 200,000 RPM
1:1 Straight Handpiece
Low-speed polishing and caries removal
1:4.2 Extraction Handpiece
Minimally invasive tooth extraction
40:1 Implant Handpiece
Precise implant placement and bone surgery

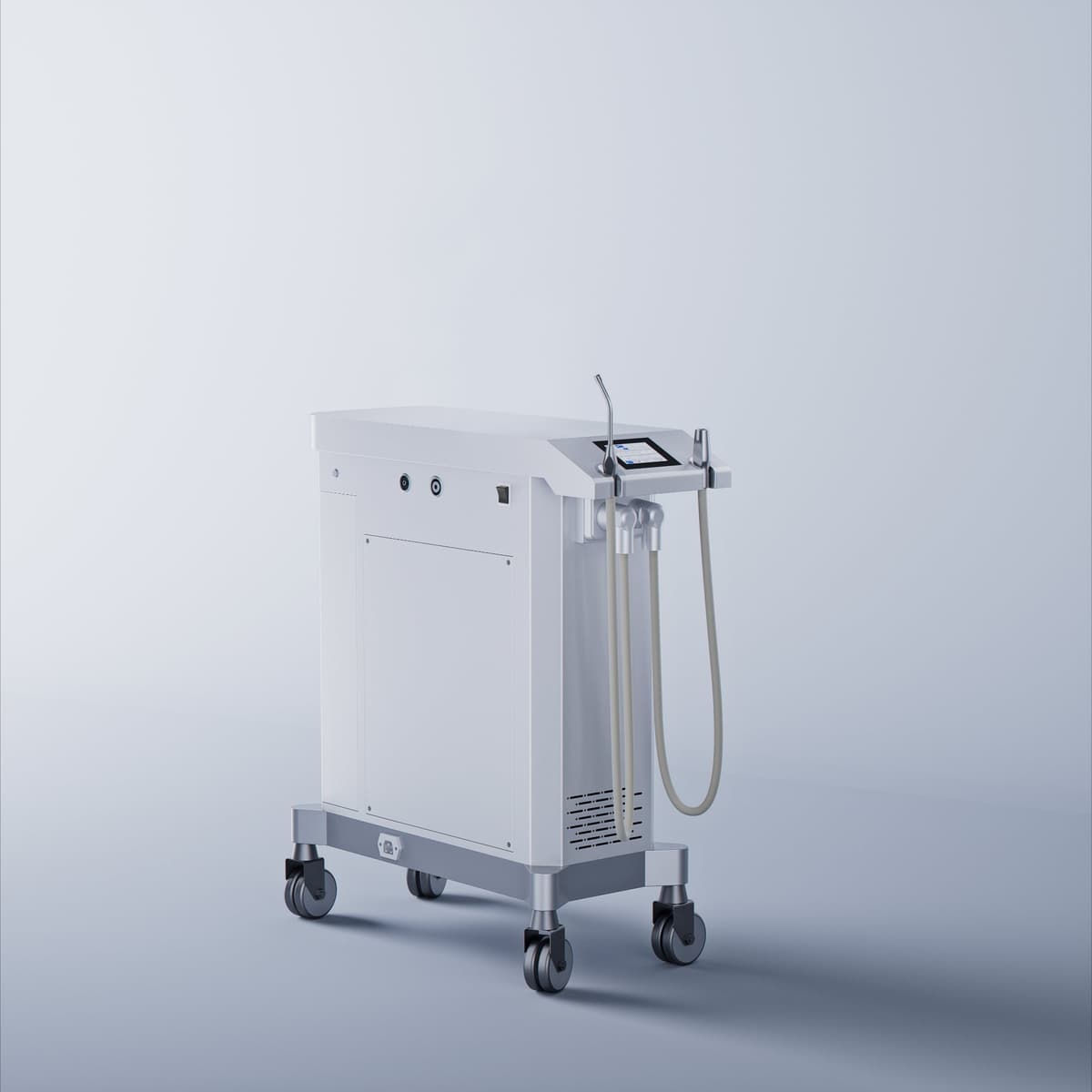

Assistant Cart
High-Speed Suction ×2
Dual HVE ports for assistant use during procedures
Low-Speed Suction ×1
Saliva ejector for patient comfort
13 L Wastewater Bottle
Large-capacity waste collection — no floor drain needed
Features
Fully Portable — No Plumbing Required
The system is completely self-contained. The Dental Cart houses its own water and motor systems, and the Assistant Cart collects all waste in a 13 L bottle. Set up a functional operatory anywhere — no fixed water lines, drainage, or compressed air supply needed.
Complete Handpiece Coverage
Four handpieces cover every clinical workflow: 1:5 contra-angle for high-speed restoration (up to 200,000 RPM), 1:1 straight for low-speed polishing, 1:4.2 for minimally invasive extraction, and 40:1 for implant placement — all driven by the integrated surgical drive system.

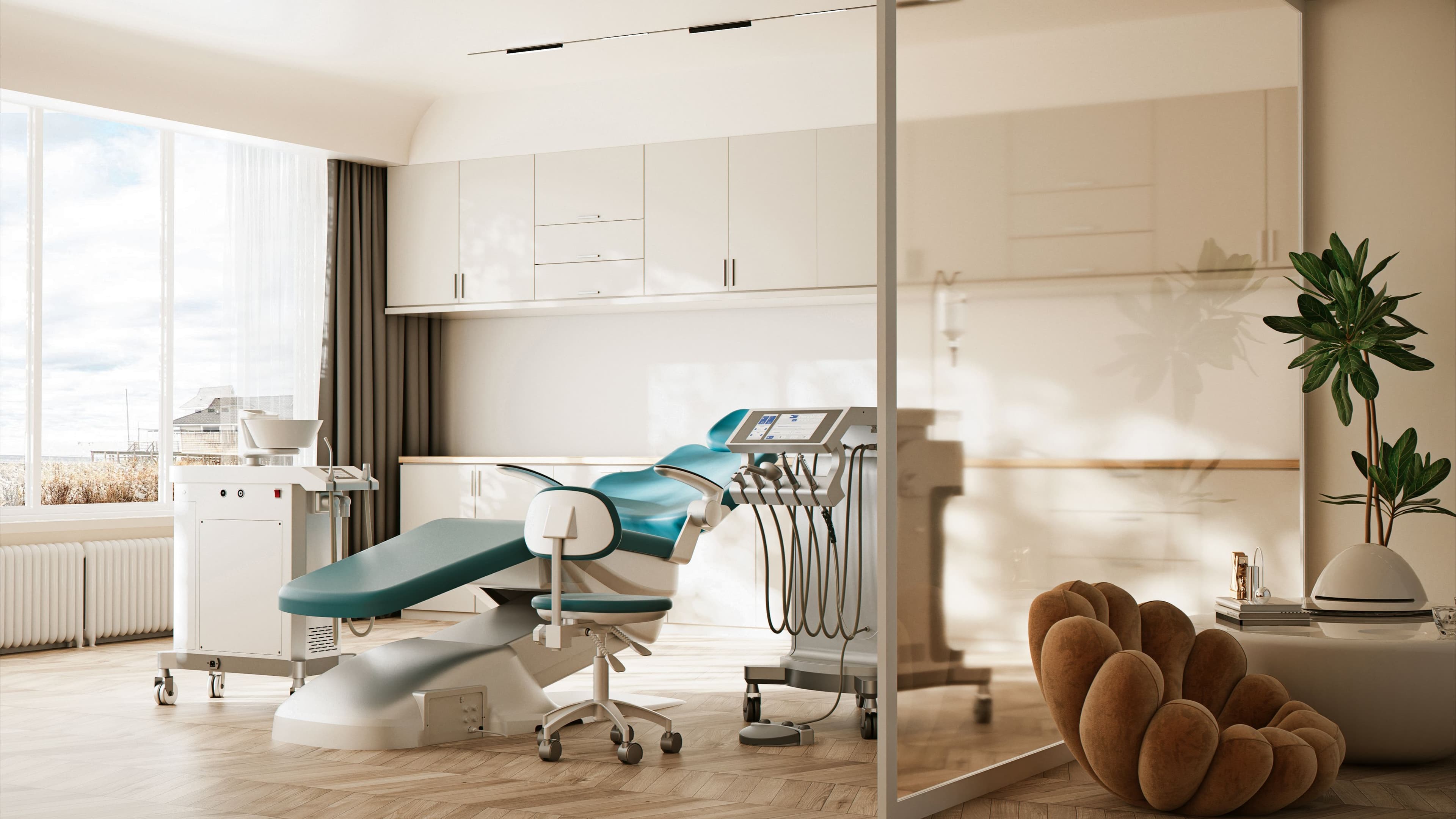

Dual-Cart Design for Full Team Workflow
The two-cart design mirrors a traditional operatory layout. The Dental Cart delivers instruments and irrigation; the Assistant Cart provides dual high-speed suction and waste management. The system supports a full dentist-assistant workflow without a permanent treatment room.
Large-Capacity Waste Collection
The Assistant Cart's 13 L wastewater bottle eliminates the need for a floor drain or permanent plumbing connection, making the full system deployable in any room — including satellite offices, mobile clinics, and overflow operatories.
Technical Specifications
| Parameter | Value |
|---|---|
| Motor Type | Electric |
| Included Handpieces | 1:5 High Speed, 1:1 Straight, 1:4.2 Extraction, 40:1 Implant |
| Ultrasonic Scaler | Included |
| Air-Water Syringe | Included |
| Air Syringe | Included |
| Prophy Angle | Included |
| High-Speed Suction | 2× (Assistant Cart) |
| Low-Speed Suction | 1× (Assistant Cart) |
| Wastewater Bottle | 13 L (Assistant Cart) |
| Fixed Plumbing Required | No — fully self-contained |
Request a Quote
Contact our team for pricing, availability, and to learn more about the Dental Cart and Assistant Cart.
