iRay Pluto Series Intraoral Sensor
by iRay Technology
Overview
The iRay Pluto Series delivers high-resolution digital intraoral imaging built around a 20 μm pixel pitch CMOS detector with a directly deposited CsI:Tl scintillator. Designed for low-dose clinical imaging, the Pluto connects via 5G WiFi — no control box required — and supports Smart AED for fast, streamlined workflows. With an IP68 ingress-protection rating and Kevlar housing, the sensor is built to withstand demanding clinical environments. Available in four sizes, the Pluto covers pediatric, adult, and veterinary applications.
Key Highlights
- 20 μm pixel pitch CMOS sensor with CsI:Tl scintillator
- 14-bit AD conversion for wide dynamic range
- IP68 ingress protection — fully waterproof
- Kevlar housing for durability
- 5G WiFi connectivity — no control box needed
- Smart AED exposure mode

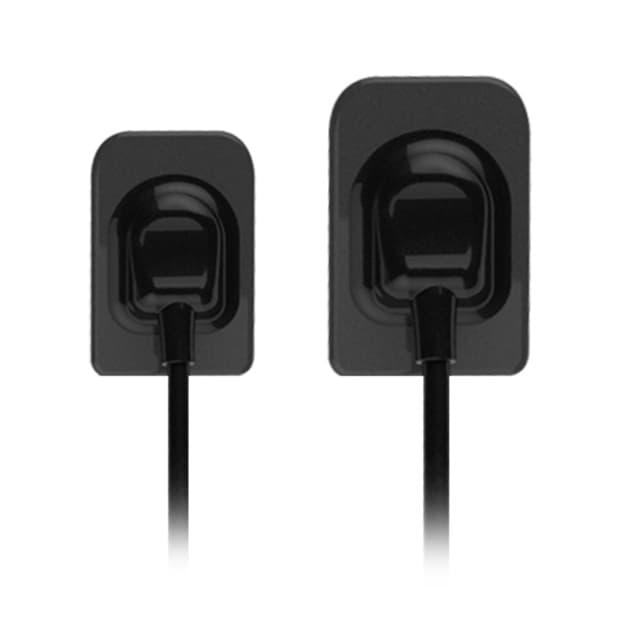

- Available in sizes 0, 1, 1.5, and 2

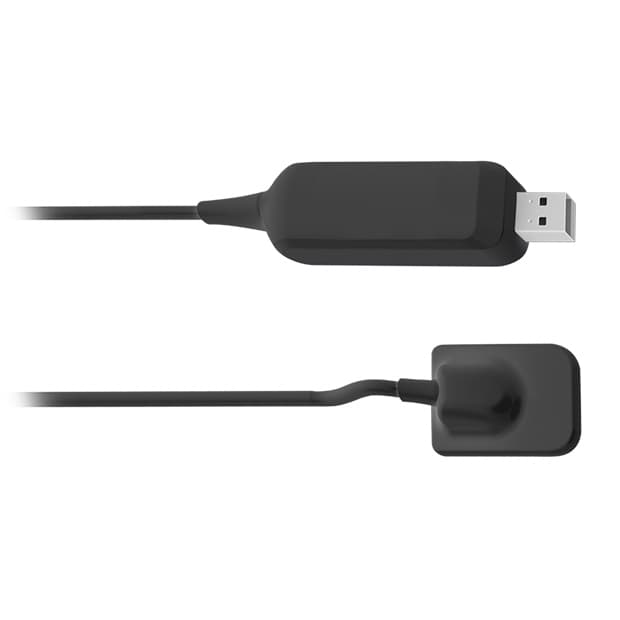

- 3 m cable standard · 5 m optional
Available Models
| Model | Dimensions | Active Area | Recommended Use |
|---|---|---|---|
| Pluto 0000X | 23.4 × 33.6 × 4.5 mm | 18 × 24 mm² | Pediatric |
| Pluto 0001X | 25.0 × 38.5 × 4.5 mm | 20 × 30 mm² | Children / Adults / Veterinary |
| Pluto 0015X | 29.2 × 42.5 × 4.5 mm | 24 × 33 mm² | Adults / Veterinary |
| Pluto 0002X | 31.0 × 45.0 × 4.5 mm | 26 × 36 mm² | Adults / Veterinary |
Technical Parameters
| Parameter | Specification |
|---|---|
| Detector Technology | CMOS |
| Scintillator | Directly Deposited CsI:Tl |
| Pixel Pitch | 20 μm |
| AD Conversion | 14-bit |
| Data Interface | 5G WiFi |
| X-ray Energy Range | 55 – 100 kV |
| Max Exposure Time | 5 seconds |
| Exposure Mode | Smart AED |
| Radiation Dose | ≥ 50 Gy |
| Housing Material | Kevlar |
| X-ray Shielding | Pb-shield behind active area |
| Cable Length | 3 m standard · 5 m optional |
| Ingress Protection | IP68 |
| Operating Temperature | 10 – 40 °C |
| Storage / Transport Temperature | −10 – 60 °C |
| Operating Humidity | 20 – 90% RH (non-condensing) |
| Storage / Transport Humidity | 10 – 95% RH (non-condensing) |
| Power Dissipation | ≤ 0.8 W |
