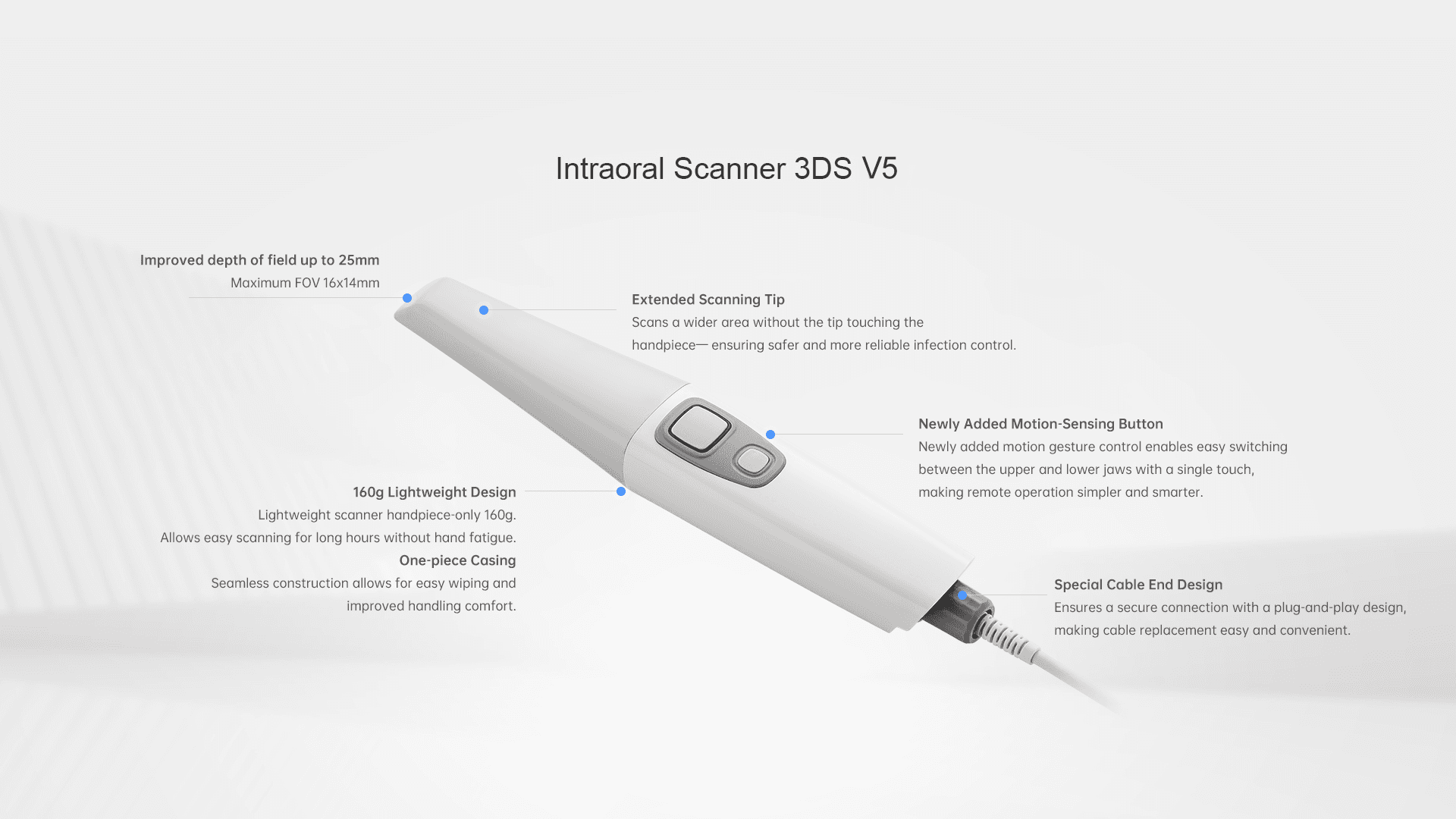

Runyes 3DS V5 Intraoral Scanner
An affordable starter scanner delivering professional-grade accuracy

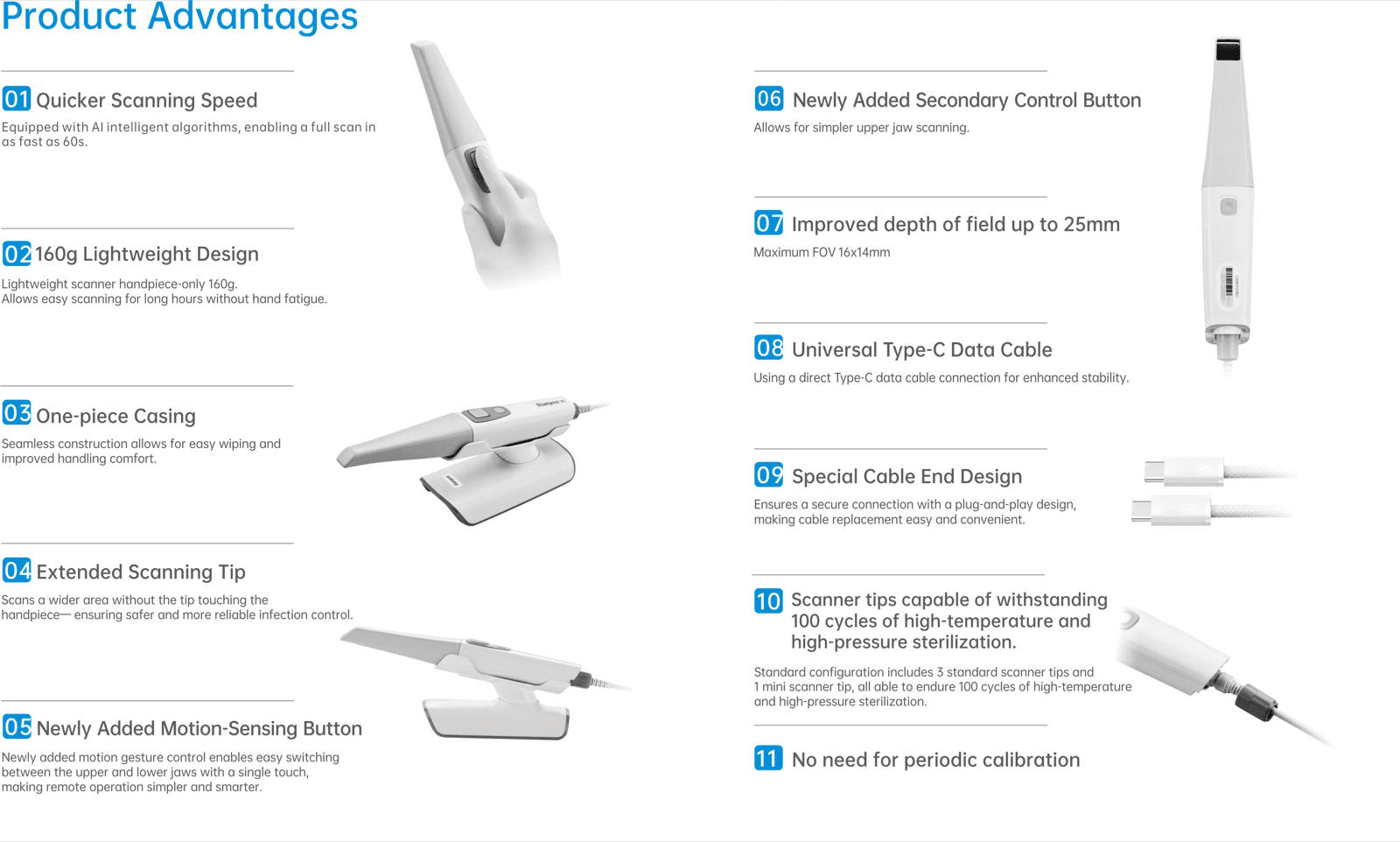

Improved depth of field up to 25mm
Maximum FOV 16 × 14 mm
Extended Scanning Tip
Scans a wider area without the tip touching the handpiece — ensuring safer and more reliable infection control.
Newly Added Motion-Sensing Button
Newly added motion gesture control enables easy switching between the upper and lower jaws with a single touch, making remote operation simpler and smarter.
160 g Lightweight Design
Lightweight scanner handpiece — only 160 g. Allows easy scanning for long hours without hand fatigue.
One-Piece Casing
Seamless construction allows for easy wiping and improved handling comfort.
Why Practices Choose the 3DS V5
Professional-grade digital scanning — without the premium price tag
Accessible Pricing
Enter the digital impression workflow at a fraction of the cost of premium brands. The 3DS V5 gives smaller and growing practices a clear path to going digital — without overextending the budget.
Easy to Learn
The intuitive motion-sensing button and straightforward scanning workflow mean your team can be confidently scanning patients within days — not weeks. Minimal training, maximum productivity from day one.
Works with Your Workflow
Exports open-format STL, PLY, and OBJ files compatible with virtually every dental CAD/CAM system, lab portal, and design software — including Exocad, 3Shape, and more. No lock-in, no friction.
Product Parameters
| Parameter | Specification |
|---|---|
| Handpiece Size | 243 × 40 × 32 mm |
| Connection Method | Wired USB 3.0 |
| Handpiece Weight | 160 g (without cable) |
| Depth of View | 0 – 25 mm |
| Frame Rate | 20 FPS |
| Scanning Accuracy | Single Crown <10 μm · Full Arch <20 μm |
| Scanner Tips Included | 3 Standard Tips · 1 Mini Tip · 1 Protective Cover |
| Standard Tip Size | 115 × 21 × 16 mm |
| Mini Tip Size | 115 × 17 × 13 mm |
| Scanning Area | Standard 16 × 14 mm · Mini 12 × 10 mm |
| Imaging Method | Optical Continuous Video Capture |
| Image Mode | 3D Video |
| Quick Reset | Yes |
| Model Optimisation | Yes |
| Output Formats | STL · PLY (True Color) · OBJ |
| Anti-Fog Method | Fan-Cooling |
| Calibration Tip | 1 Set (Optional) |
Ready to Go Digital — Without Breaking the Budget?
The 3DS V5 is one of the most competitively priced intraoral scanners on the market. Contact our team to get a quote, ask about compatibility with your current software, or arrange a live demo for your practice.
