Surgical Drive System — ES70/ES90
Surgical Drive System by Jinme Medical
Overview

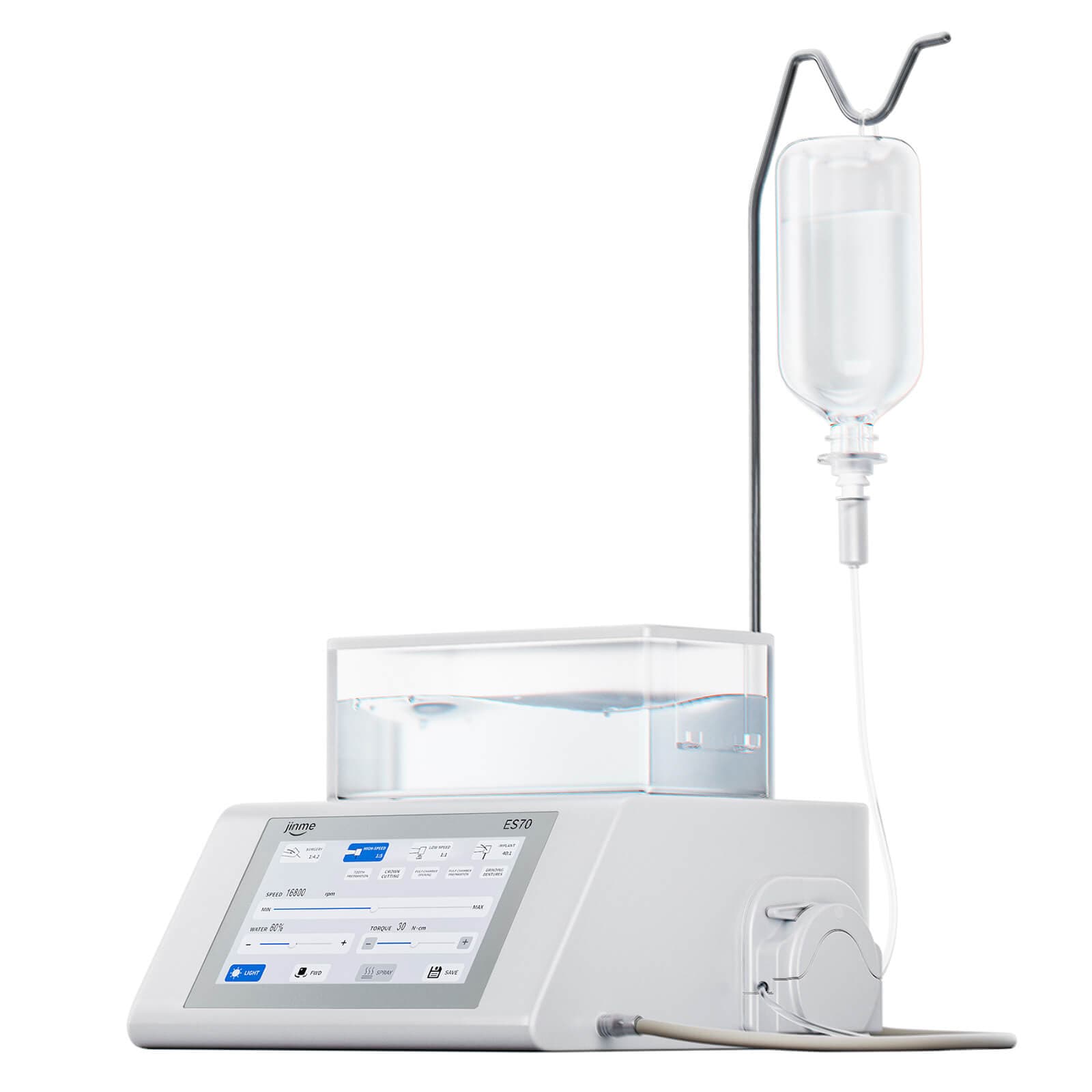

The Jinme ES70/ES90 Surgical Drive System is a fully integrated electric motor platform engineered for implant placement, minimally invasive tooth extraction, high-speed restoration, and oral surgery — all in one unit. An intelligent internal algorithm with automatic torque calibration and industrial-grade chips delivers immediate, precise motor response across all four included handpieces and 9+ compatible attachment types.
The ultra-quiet built-in peristaltic pump provides continuous irrigation without requiring fixed water or air supply lines, making the ES70 fully portable and suitable for operating rooms, mobile setups, and clinical education environments. German bearings, a high-precision cartridge accurate to within 0.02mm, and full autoclave compatibility (134°C, 5 min) complete a system built for long-term clinical reliability.
Key Highlights

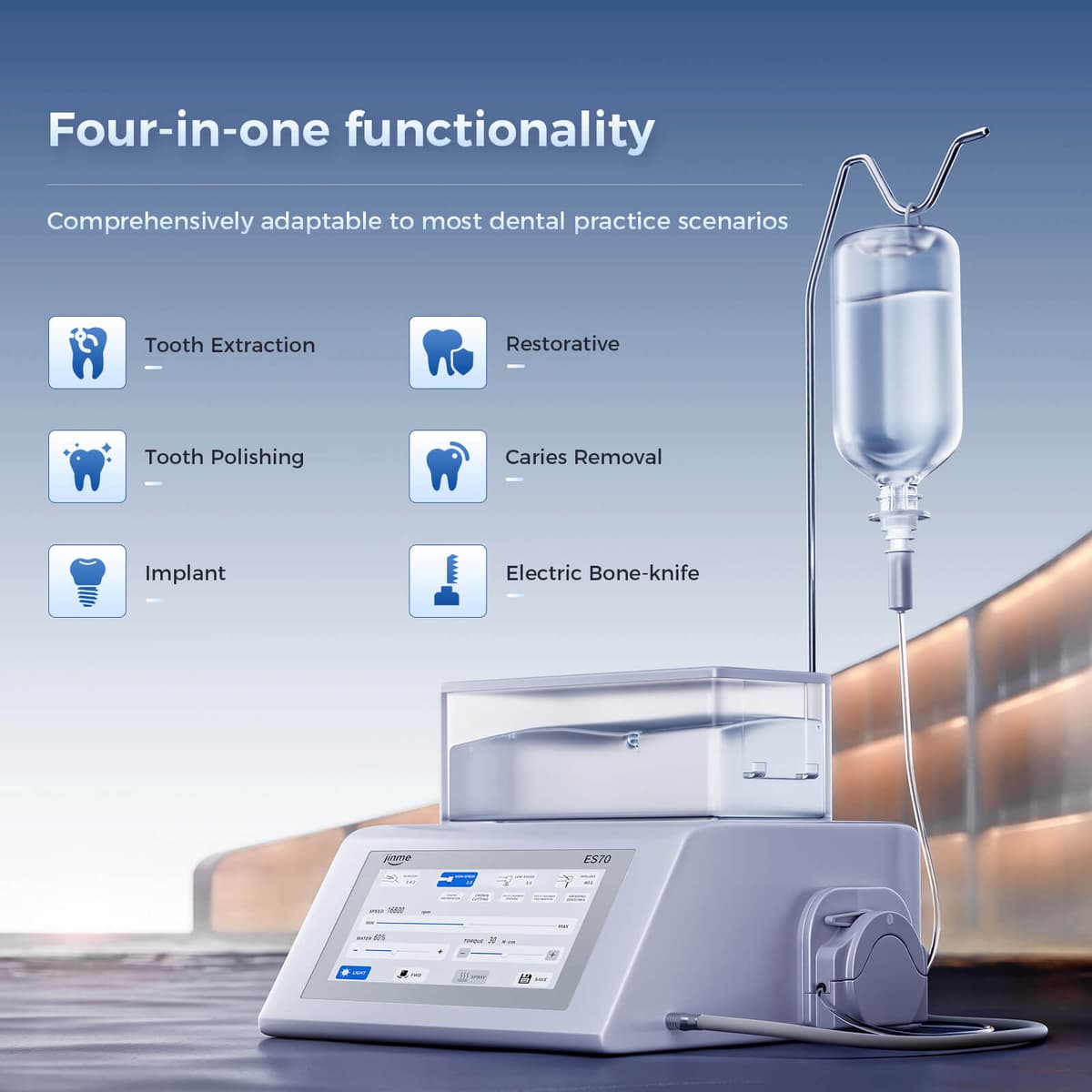

- All-in-one: implant, extraction, restoration, caries removal, bone surgery
- 0–200,000 RPM maximum speed (1:5 ratio handpiece)
- Includes 4 handpieces: 1:4.2, 1:5, 1:1, and 40:1
- Compatible with 9+ handpiece types
- Ultra-quiet peristaltic pump — no fixed water/air supply needed
- Intelligent algorithm with automatic torque calibration
- High-precision cartridge — accuracy within 0.02mm
- German bearings for stability and durability
- Portable — suitable for OR, mobile settings, and education
- Foot pedal control — direction, speed, and spray
- FDA-cleared

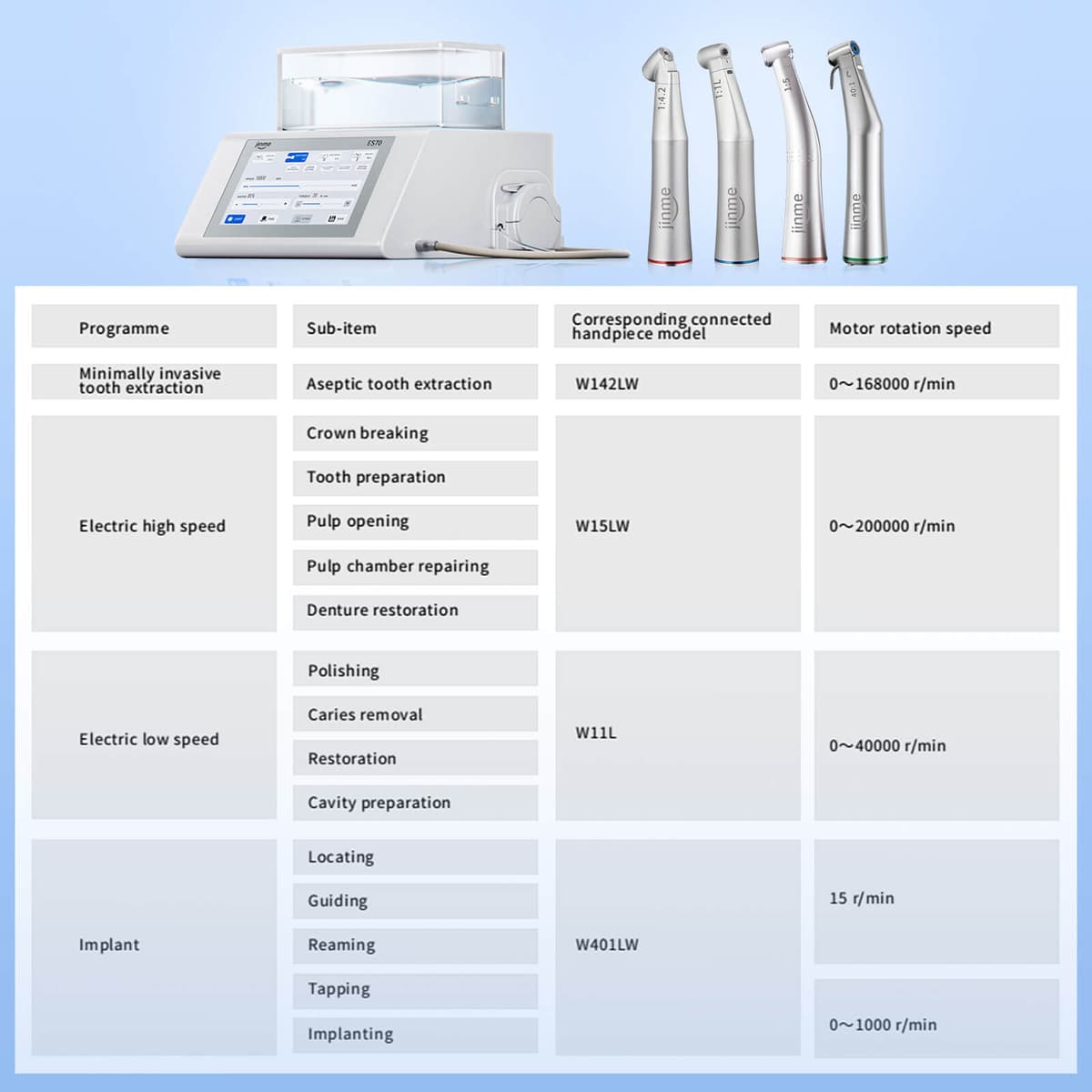

Included Handpieces
4-piece set covering every surgical and restorative workflow
Minimally invasive tooth extraction, crown splitting
Tooth preparation, pulp chamber, denture restoration
Polishing, caries removal, cavity preparation, restoration
Implant locating, guiding, reaming, tapping, placement
Features
Intelligent Surgical Algorithm
Industrial-grade chips power an intelligent internal algorithm that provides immediate motor response and automatic torque calibration — adapting in real time to the resistance of each clinical procedure for safe, consistent performance.
Multi-Mode Handpiece Compatibility
Compatible with 9+ handpiece types. The included 4-piece set covers every core workflow: 1:4.2 for extraction, 1:5 for high-speed restoration, 1:1 for polishing and caries removal, and 40:1 for precise implant placement.
Ultra-Quiet Peristaltic Pump
The built-in peristaltic irrigation pump runs silently and continuously — no fixed water or air lines required. The ES70 is fully self-contained and portable, suitable for operating rooms, mobile treatment settings, and teaching facilities.
Precision Engineering

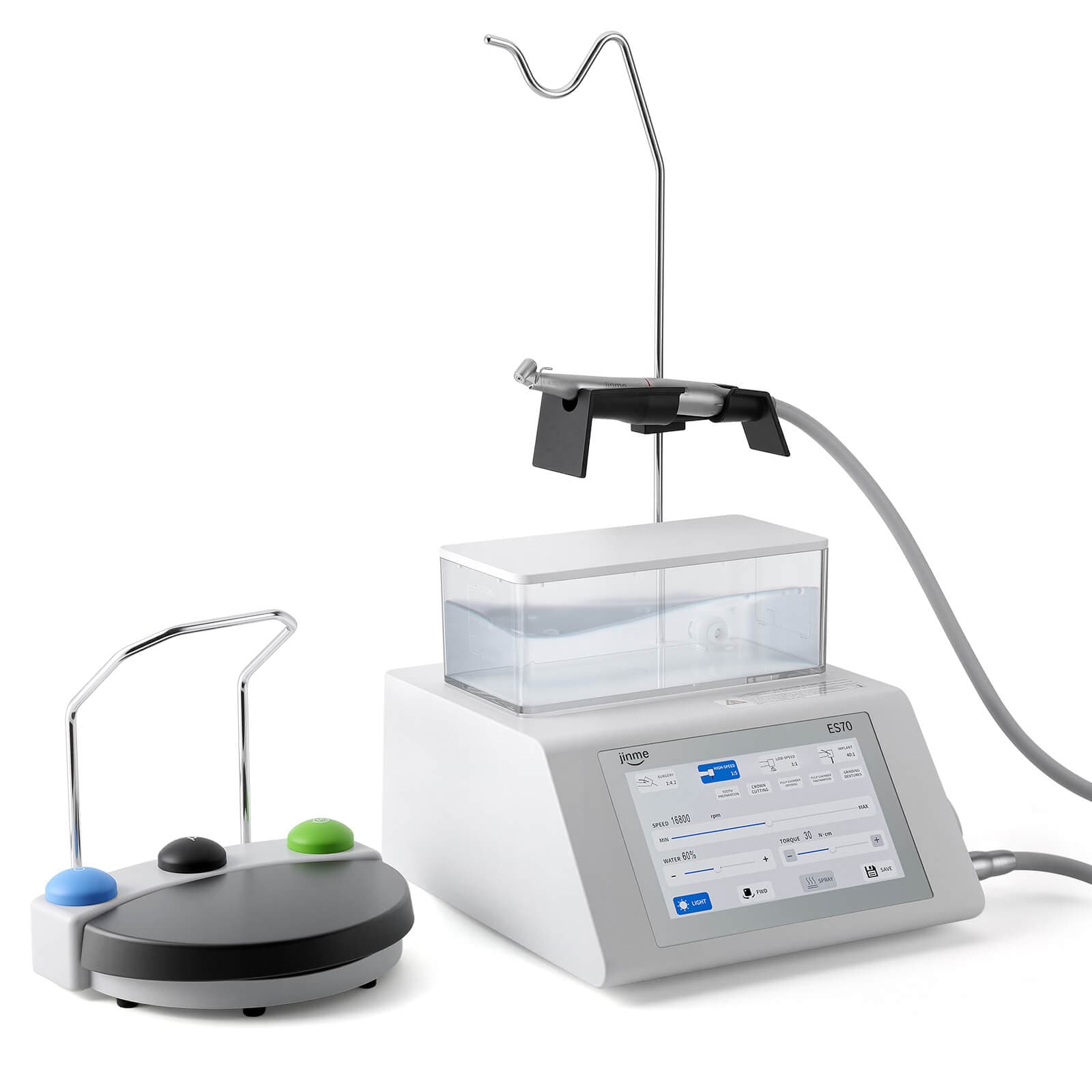

German bearings deliver long-term stability and smooth rotation. The high-precision cartridge maintains accuracy within 0.02mm. The handpiece holder stores all four included handpieces and the foot pedal controls direction, speed, and spray from the floor.

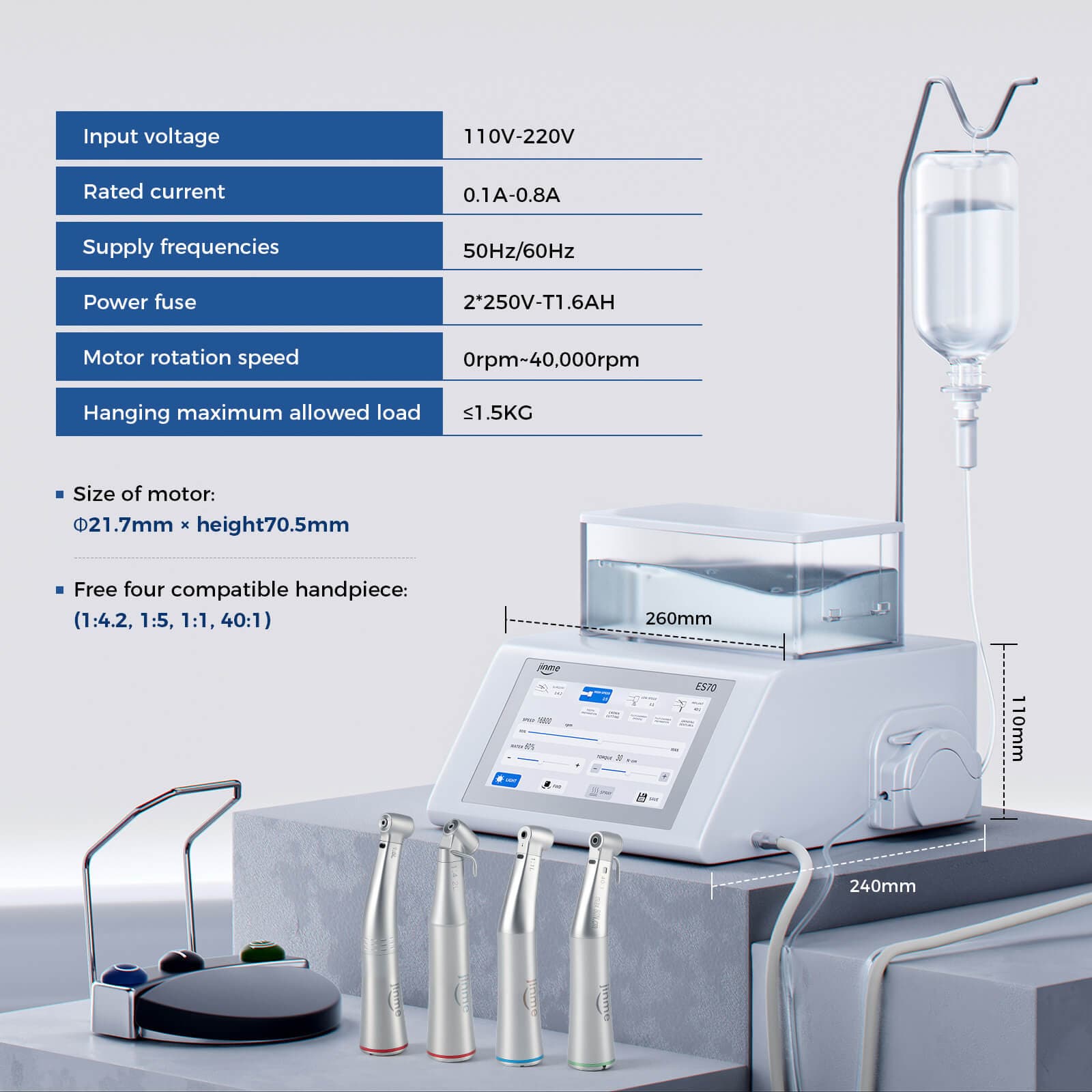

Technical Specifications
| Parameter | Value |
|---|---|
| Model | ES70 / ES90 |
| Mainframe Dimensions | 260mm × 240mm × 110mm |
| Motor Dimensions | Ø21.7mm × 70.5mm |
| Motor Rated Voltage | DC 32V |
| Motor Speed Range | 0 – 40,000 RPM |
| Maximum Speed (1:5 ratio) | 0 – 200,000 RPM |
| Maximum Torque | 5 – 70 N·cm |
| Motor Rotation | Forward / Reverse |
| Input Voltage | 110V – 220VAC |
| Rated Current | 0.1A – 0.8A |
| Supply Frequency | 50Hz / 60Hz |
| Maximum Power | 180VA |
| Max Hanging Load | ≤ 1.5 kg |
| Cartridge Accuracy | Within 0.02mm |
| Sterilization | High-temp steam, 134°C × 5 min |
| Regulatory | FDA-cleared |
